FUNCTION_BLOCK E_N_TABLE
  • This is the E_N_TABLE function block type for table-driven generation of a finite train of separate events as defined in Annex A of IEC 61499-1.

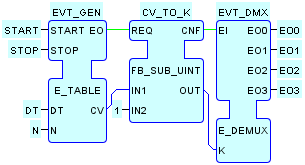

  • Its operation is modeled by the diagram shown below.
  • In practice, it is implemented as a subclass of E_TABLE rather than as a composite FB type.

Test Procedure
  1. Open and run events/E_N_TABLE in the FBDK.
  2. Enter data for the input variables, for example:
    • DT = [t#1s,t#2s,t#1.5s,t#2s]
    • N = 4
  3. Exercise the FB by clicking on the event inputs.
