SYSTEM LIFTER_MVCDL

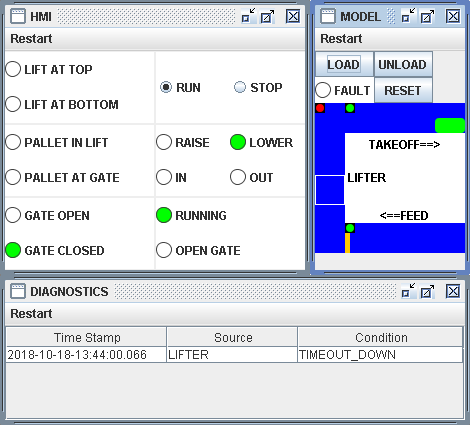

This System Configuration implements the layered Model+View+Control+Diagnostics testing architecture for the pallet handling example.The screenshot above shows the result of performing the following actions:

  1. Launching the configuration.
  2. Clicking the RESET button to initialize the system.
  3. Clicking the LOAD button to load a pallet onto the FEED conveyor.
  4. Clicking the RUN button.
  5. Allowing the system to run through Steps 1-5 shown in the animation.
  6. Causing a fault by clicking on the lifter as it is moving down.

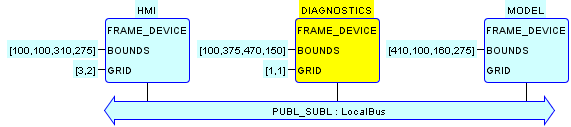

As shown below, this System configuration is created by simply adding a DIAGNOSTICS device to the LIFTER_MVCL configuration. This device contains a MONITOR Resource to detect the fault conditions, and a LOG device to record the detected fault conditions.

The use of the local multicast and Tagged Data design patterns enables the insertion of the DIAGNOSTICS Device into the System configuration without any modification of the Tag data base except the addition of the two Diagnostics-related channels shown in the table below.

Tag Name Type(s) Description
DIAG WSTRING,WSTRING SRC(Source), COND (Condition)
DIAG_CLK Diagnostic Sampling Clock

DIAGNOSTICS

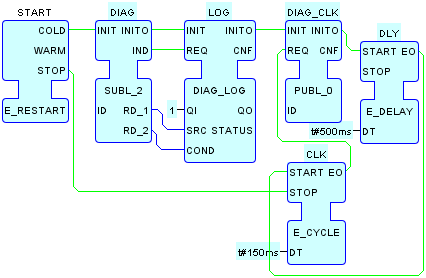

DIAGNOSTICS.LOG

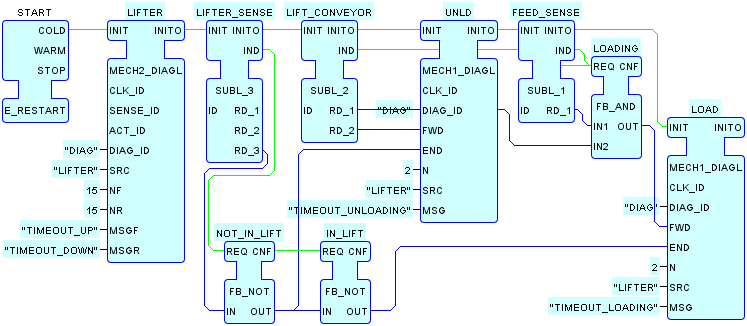

DIAGNOSTICS.MONITOR
