SYSTEM LIFTER_VIEWL


HMI
VIEW

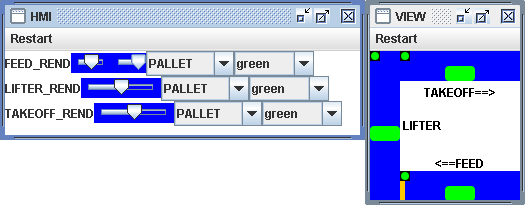

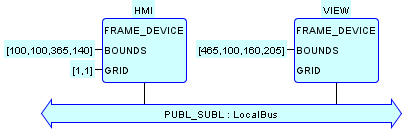

This System Configuration implements the layered View testing architecture for the pallet handling example. The HMI device encapsulates the functionality of the human interface layer, and the VIEW device encapsulates the functionality of the View layer.

The VIEW device contains an instance of the specialized VIEW_PANEL resource type to provide the necessary layout of View elements for the drilling example.

Inter-layer communication is implemented with the local multicast pattern, e.g., by using PUBL_3/SUBL_3 for linking the MECH_HMIL/MECH_VIEWL pairs.

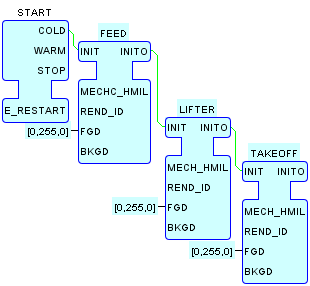

HMI.RES1

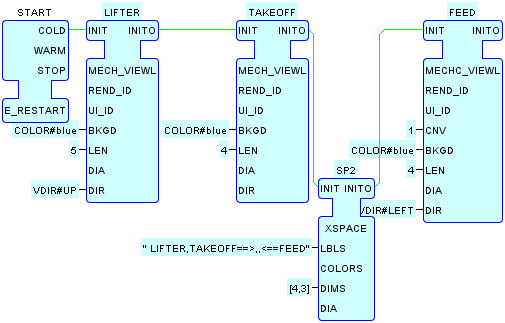

VIEW.LIFTER
