FUNCTION_BLOCK MECH1_DIAGL

Hover on a highlighted element
to pop up its description (if any).

MECH1_DIAGL

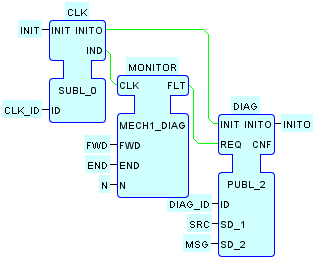

An instance of this Composite Function Block type provides local multicast functionality to an encapsulated instance of the MECH1_DIAG type. Diagnostic timing clock events are provided on the local channel identified by the CLK_ID input, and local publication of the diagnostic information is provided on the channel identified by the DIAG_ID input.
