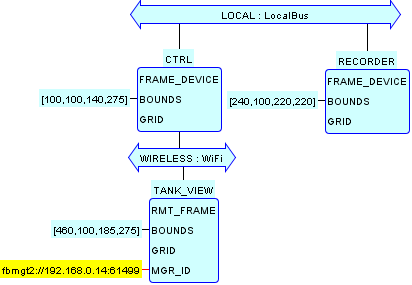

This System Configuration is functionally equivalent to the TANK_MVCM configuration. However, in this configuration the TANK_VIEW Device executes on a remote Raspberry Pi 2 Model B device at IP address 192.168.0.14 , as shown in the screenshot labeled Raspi below.

The TANK_VIEW device is launched by the following sequence of terminal commands on the Raspberry Pi:

cd fbdk3
sudo java -jar device.jar TANK_VIEW RMT_FRAME MGR_ID fbmgt2://192.168.0.14:61499

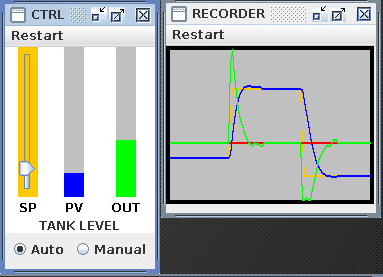

The system configuration is launched from the FBDK running under Bodhi Linux®, as shown in the screenshot labeled Bodhi below.
