SYSTEM TEST_SYS2

As shown above and below, this system configuration provides graphic user interface (GUI) elements for testing an instance of the TEST_RES2 type. A typical sequence of operation of this test configuration would be:

  1. The situation after launching the TEST_SYS2 configuration.
  2. After typing 10.0 in the first line and pressing the ENTER key.
  3. After typing 30.0 in the second line and pressing the ENTER key.
1
2
3
DEV1
DEV1.INPUTS

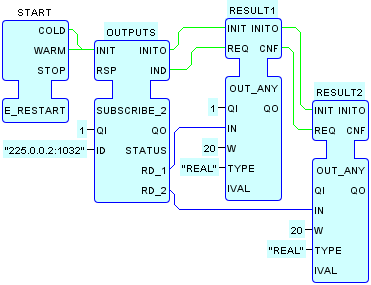

DEV1.OUTPUTS

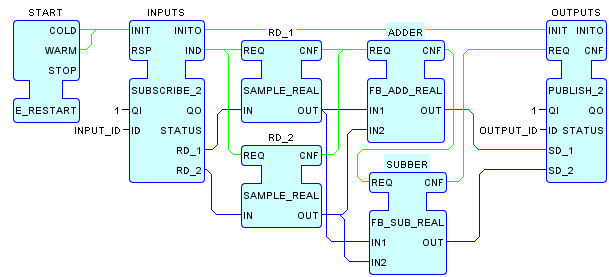

DEV1.TESTED
