Multiple Element Selection

You can select and move multiple nodes (but not connections) in some diagrams on the Worksheet by holding down the Shift key while selecting and dragging. When these elements move, their attached connections move with them.

Below are some examples of multi-element dragging in Function Block Diagrams, Execution Control Charts (ECCs), and System Network Diagrams,

Function Block Diagrams

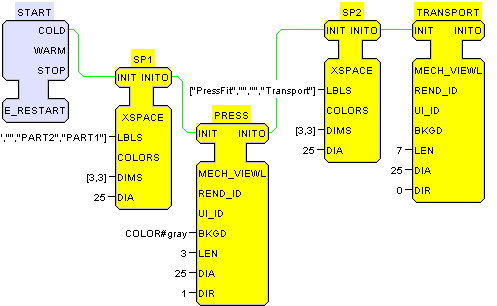

Before Drag - SP1.LBLS Parameter Clipped

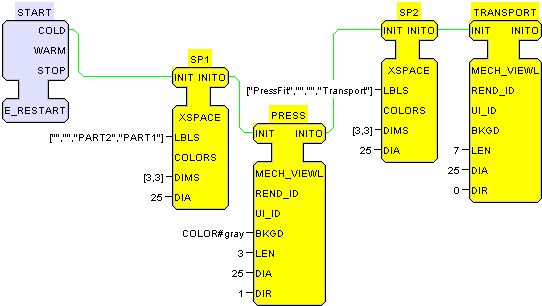

After Drag to Right

Execution Control Charts (ECCs)

Before Drag	After Drag

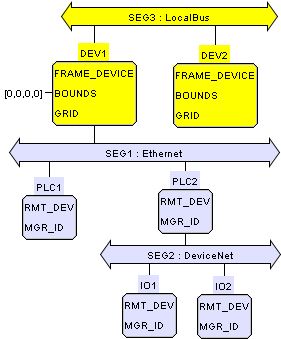

System Network Diagrams

Before Drag	After Drag
