SEND_BITS/RCV_BITS

The sequence of screen shots below illustrates a sequence of operation of the SEND_BITS/RCV_BITS panels in the CODEC_TEST system configuration. See subclause 5.4 of the Compliance Profile for explanation of data value encodings.

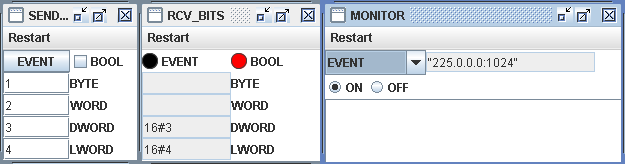

1. UDP channel 225.0.0.0:1024 (the lowest allowed value) is selected by default at startup for monitoring of EVENT (only) transmission.

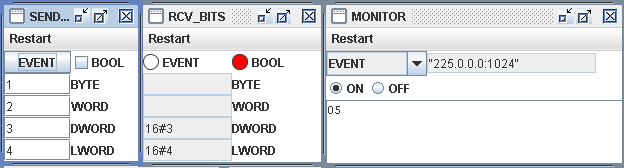

2. An event has been transmitted; the encoded data consists of a single NULL byte (05 hexadecimal).
3. UDP channel 239.255.255.255:65535 (the highest allowed value) has been selected for monitoring of the transmission of a single BOOL value, and the boolean value TRUE has been transmitted as a single byte with the value 41 hexadecimal.

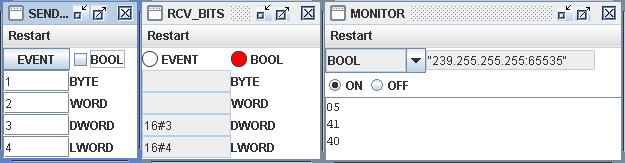

4. Now the boolean value FALSE has been transmitted as a single byte with the value 40 hexadecimal.
5. UDP channel 225.0.0.0:65535 has been selected for monitoring of the transmission of a BYTE value and a WORD value, and the corresponding values have been transmitted together with tags of 51 and 52 hexadecimal, respectively, and values of 1 and 2, respectively.

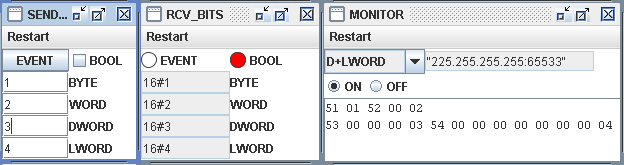

6. UDP channel 225.255.255.255:65535 has been selected for monitoring of the transmission of a DWORD value and an LWORD value, and the corresponding values have been transmitted together with tags of 53 and 54 hexadecimal, respectively, and values of 3 and 4, respectively.
Last updated: 2011-01-12.
