SEND_ENUMS/RCV_ENUMS

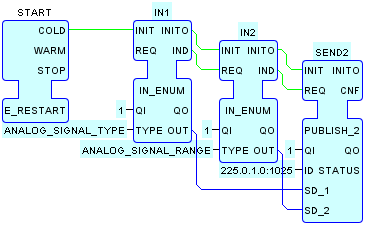

The SEND_REAL_VS/RCV_REAL_VS
panel pair are part of the CODEC_TEST2
system configuration. They utilize instances of IN_ENUM and OUT_ANY for input and
output of transmitted data, respectively. This data is of the enumerated
data types ANALOG_SIGNAL_TYPE and ANALOG_SIGNAL_RANGE
documented below.

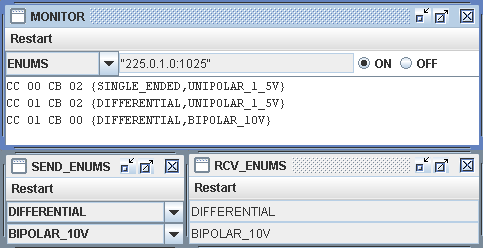

In the example shown below, three
pairs of values of the types ANALOG_SIGNAL_TYPE and ANALOG_SIGNAL_RANGE
have been transmitted with ASN.1 tags of CC and CB
hexadecimal, respectively.
|
||
| Display | Transmitted values | |
|---|---|---|
 |
ANALOG_SIGNAL_TYPE | ANALOG_SIGNAL_RANGE |
| SINGLE_ENDED DIFFERENTIAL DIFFERENTIAL |
UNIPOLAR_1_5V UNIPOLAR_1_5V BIPOLAR_10V |
|
