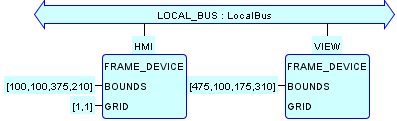

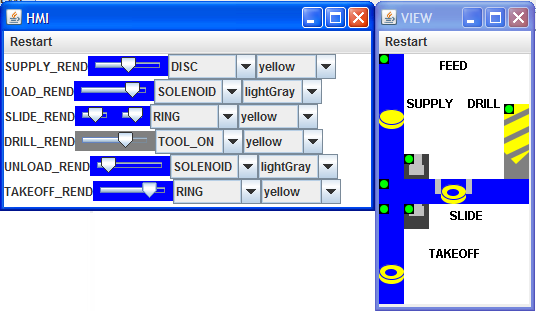

This system configuration implements the View development step for the drilling example. It can be launched with the FBDK to produce the illustrations of operational sequences in the Animation step of the MVCD engineering methodology.

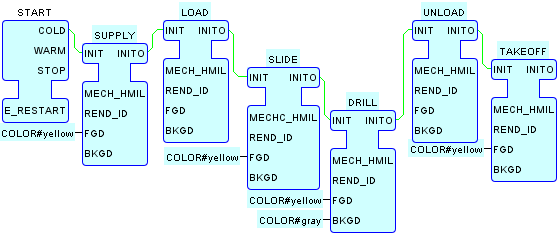

• The HMI.RES1 Resource encapsulates the functionality of the Human Interface layer.
• The VIEW Device encapsulates the functionality of the View layer.
  • The INPUT Resource provides the View elements for the SUPPLY conveyor, LOAD solenoid, and DRILL station.

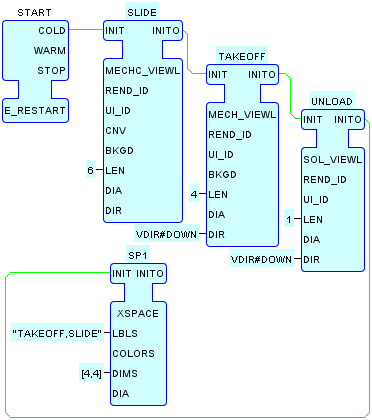

  • The OUTPUT Resource provides the View elements for the SLIDE conveyor, UNLOAD solenoid, and TAKEOFF conveyor.
  • The Local Multicast Design Pattern is used to transport variables from instances of the MECH_HMIL and MECHC_HMIL FB types in the HMI Device to the correspondingly named instances of the MECH_VIEWL (as well as SOL_VIEWL) and MECHC_VIEWL FB types in the VIEW Device, respectively.
