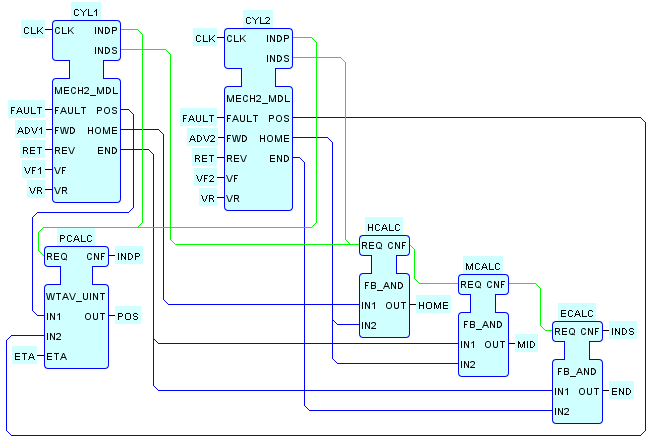

An instance of this Composite Function Block type models the
operation of a dual-stroke
cylinder. Two instances of the MECH2_MDL
type model the operation of the two cylinders, and the ETA
parameter determines the contribution of each cylinder to the total
linear displacement as calculated by the WTAV_UINT block. For
instance, with a value of 0.4 for ETA , the first
cylinder would contribute 40% of the total stroke and the second
cylinder would contribute 60%.
See the DSCYL_MDLL
function block type for an example of the use of an instance of this
function block type.
