FUNCTION_BLOCK SOL_MDL

An instance of this function block type models the behavior of a solenoid mechanism with mechanical stops at each end of its motion. The mechanism advances at a speed of VF percent full scale per CLK event when the FWD input is TRUE and retracts at a  speed of VR percent full scale per CLK event when it is FALSE . Motion is inhibited when the FAULT input is TRUE . Sensor outputs indicate whether the mechanism is at the HOME (retracted) or END (advanced) position.

An instance of this function block type is typically used as a component of the SOL_MDLL type.

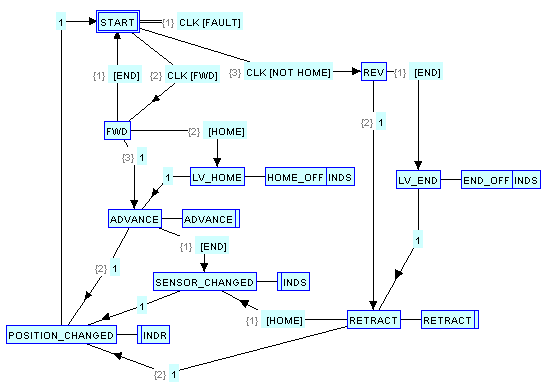

The operation of an instance of this type is modeled by the Execution control Chart (ECC) and algorithms shown below.

ECC
ALGORITHMS
ALGORITHM HOME_OFF IN ST : HOME := FALSE; END_ALGORITHM

ALGORITHM ADVANCE IN ST :
POS := POS + VF;
IF POS >= 100 THEN
  POS := 100;
  END := TRUE;
END_IF
END_ALGORITHM

ALGORITHM END_OFF IN ST : END := FALSE; END_ALGORITHM

ALGORITHM RETRACT IN ST :
POS := POS - VR;
IF POS <= 0 THEN
  POS := 0;
  HOME := TRUE;
END_IF
END_ALGORITHM
