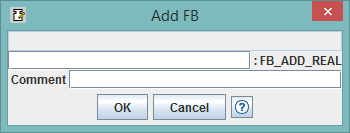

The Instance Dialog
When editing a network in the
Worksheet, a single dialog style is used
both when
instantiating (adding new instances) of function blocks,
resources, devices or adapters (plugs or sockets) to the network, and
when editing existing instances.
- The Name field must be edited to form a valid IEC
61131-3 identifier, and must not duplicate the name of any other
element in the diagram or in its surrounding entity, e.g., the name
of a variable in a Composite FB surrounding the network.
- Pressing the OK button or pressing the Enter
key when editing in a field will cause the dialog to attempt to close
and save the current values for the edited element. If an error is
found, the window will not close and an error message will appear in
the status field below the title bar.
- Pressing the Cancel button will close the window and
cancel any changes entered.
