Testing a System Configuration

1. Launching remote devices (if any)
2. Launching the system configuration
3. Testing and stopping the system

Launching Remote Devices

• A locally hosted remote device is one whose MGR_ID parameter value begins with "localhost:", "127.0.0.1:", or the IP address of the local workstation, e.g., "192.168.1.3" (the default initial value for the MGR_ID parameter is "localhost:61499"). This type of device can be launched directly from the Editor panel, using the Run option from its pop-up menu in the system configuration diagram ( in the navigation tree).
  • Once the locally hosted device is running, its frame(if any) will appear on the display and its outline in the system configuration diagram will turn green.
• A remotely hosted device is one that does not meet the above criteria. This kind of device can be launched in one of two ways:
  • If the remote device is located on a workstation capable of hosting the FBDK, the device can be launched from the same system configuration on the remote workstation by adjusting its MGR_ID parameter appropriately. For instance, suppose a system configuration is to be launched from workstation A with IP address 192.168.1.3, and the configuration contains a remote device DEV_D with a MGR_ID value of "192.168.1.5:61500". Then if there is a workstation B with IP address 192.168.1.5 hosting the FBDK, the remote device could be launched as follows:
    1. Open the same application in the FBDK on workstation B.
    2. Set the DEV_D.MGR_ID parameter to "localhost:61500" in the FBDK on workstation B.
    3. Launch DEV_D on workstation B, using the Run option from its pop-up menu.
  • You can also launch either a remote device (e.g., RMT_FRAME) or a local device (e.g., FRAME_DEVICE) in a separate run-time process, using the operating system's command line interpreter.
    • The general format for this command is:
      java -jar device.jar deviceName deviceType parameterName1 parameterValue1 parameterName2 parameterValue2...
    • For instance, you could enter the following in a Windows™ command prompt window:
      cd \fbdk2
java -jar device.jar FRAME FRAME_DEVICE BOUNDS "[100,100,250,400]"

Launching the System Configuration

After launching the remote devices, if any, you launch the system configuration by pressing the Run item of the popup menu for the root node of the Element Navigator.

• You can also launch a System configuration outside of the FBEditor, using the following command-line format:
  java -jar system.jar systemName
  • For instance, you could enter the following in a Windows™ command prompt window:
    cd \fbdk2
java -jar system.jar ASM_MVCDL

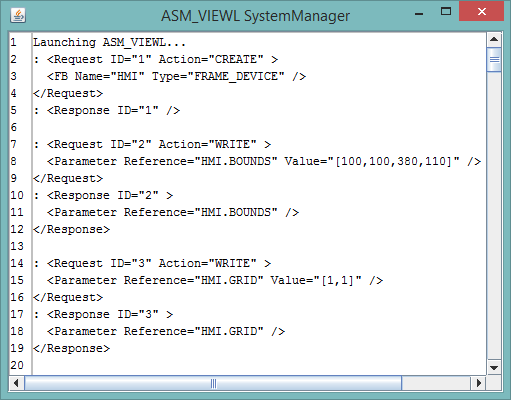

• Upon launching, a SystemManager window as shown below will open and log all the XML configuration requests and responses that occur during the launch process.

• When a System is successfully launched from the FBEditor, its Running status will be indicated by the fact that its top-level enclosure is outlined in green in the Worksheet.
• If an error occurs during launching, an error message will appear in a popup window and the transaction where the error occurred can be found at the bottom of the listing in the SystemManager window. Possible error messages include:
  • NO_SOCKET - A remote device has either not been launched or has failed to initialize its management socket identified by the MGR_ID parameter. This usually occurs after a delay caused by waiting for the socket, which you may notice by a configuration command or response being "frozen" in the SystemManager window.
  • NOT_READY - A device is not responding quickly enough. You may be able to overcome this problem by adjusting the command/response timeout, using the timeout parameter of the Preferences dialog.
  • INVALID_STATE - This is probably due to trying to re-configure a device that is already running.
  • DUPLICATE_OBJECT - The manager is trying to create an object with the same name as an object that is already present in the target Resource or Device.
  For explanations of other error messages, see subclause 6.5 of the Compliance Profile.
• If an error occurs as described above, you should stop the entire system configuration using the following procedure before attempting to restart.

Testing and Stopping the System Configuration

• After testing to validate the system's operation versus requirements, you can stop the configuration and kill all the locally running processes by exiting the FBEditor. This assumes, of course, that you are happy with the results of the testing and have already saved all your editing work on the system configuration.
• In the more usual case that you want to stop the running processes and make changes to correct errors, you can do the following:
  1. Stop the processes in non-workstation hosts with appropriate platform-specific actions.
  2. Stop the processes running in windows on both the local and remote workstations by closing the windows.
  3. Stop the non-window processes that you started with FBEditors in both local and remote workstations by using the Stop item of the popup menu for the Device in the system configuration diagram.
  4. It is also possible to stop all the processes that are under control of a SystemManager by closing the SystemManager window.
