The first column of Table B-1 shows the SystemManager
log for a launch of the RMT_DEV_TEST system configuration,
while the second column shows the corresponding management Request/Response
transactions, encoded as defined in subclause 6.4.1
of this Compliance Profile.

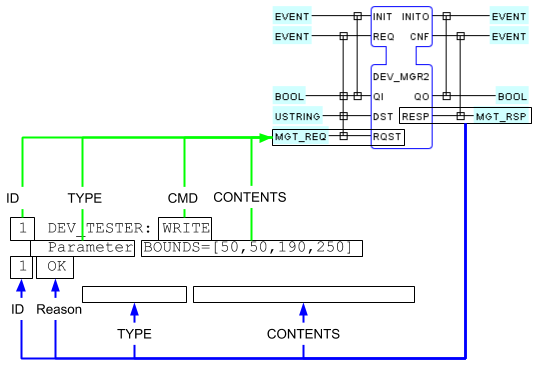

Figure B-1 illustrates the correspondence between
the log entries and the fields of the structured data types MGT_REQ and MGT_RSP, which are
used in the fbmgt2 encoding scheme defined in
subclause 6.4.2 of this Compliance
Profile. As shown in Figure B-1, instances of these data types are
used for the RQST input and RESP outputs,
respectively, of instances of the DEV_MGR2 FB type
for remote device management.
NOTE - See transactions withIDnumbers109and162in Table B-1 for examples of non-emptyTYPEandCONTENTSfields.
The example begins with configuration of the local device instance named
DEV_TESTER, and continues with the configuration of the
remote device instance DEV1
at Request ID="110". The actual DST input
to the corresponding DEV_MGR
block in DEV1 is given by deleting the "DEV1"
string (and full stop character '.' if any) from the
indicated destination; for example, the DST string of
Request ID="111" is empty and the DST string of
Request ID="112" is "RES1" .
fbmgt2 mapping of SystemManager
log elements
Table B-1 - RMT_DEV_TEST
SystemManager log
|
|
|---|---|
SystemManager log
|
XML encoded Request/Response
|
Launching RMT_DEV_TEST... Creating DEV_TESTER:FRAME_DEVICE... 1 DEV_TESTER: WRITE Parameter BOUNDS=[50,50,190,250] 1 OK 2 DEV_TESTER: WRITE Parameter GRID=[2,1] 2 OK 3 DEV_TESTER: CREATE FB RES1:PANEL_RESOURCE 3 OK 4 DEV_TESTER.RES1: CREATE FB IN1:IN_ANY 4 OK 5 DEV_TESTER.RES1: WRITE Parameter IN1.QI=1 5 OK 6 DEV_TESTER.RES1: WRITE Parameter IN1.TYPE=REAL 6 OK 7 DEV_TESTER.RES1: WRITE Parameter IN1.IVAL=10.0 7 OK 8 DEV_TESTER.RES1: WRITE Parameter IN1.W=10 8 OK 9 DEV_TESTER.RES1: CREATE FB PLUS:FB_LABEL 9 OK 10 DEV_TESTER.RES1: WRITE Parameter PLUS.QI=1 10 OK 11 DEV_TESTER.RES1: WRITE Parameter PLUS.LABEL=+ 11 OK 12 DEV_TESTER.RES1: CREATE FB IN2:IN_ANY 12 OK 13 DEV_TESTER.RES1: WRITE Parameter IN2.QI=1 13 OK 14 DEV_TESTER.RES1: WRITE Parameter IN2.TYPE=REAL 14 OK 15 DEV_TESTER.RES1: WRITE Parameter IN2.IVAL=20.0 15 OK 16 DEV_TESTER.RES1: WRITE Parameter IN2.W=10 16 OK 17 DEV_TESTER.RES1: CREATE FB PUB:PUBLISH_2 17 OK 18 DEV_TESTER.RES1: WRITE Parameter PUB.ID=225.0.0.2:1032 18 OK 19 DEV_TESTER.RES1: WRITE Parameter PUB.QI=1 19 OK 20 DEV_TESTER.RES1: CREATE FB SB:SUBSCRIBE_1 20 OK 21 DEV_TESTER.RES1: WRITE Parameter SB.ID=225.0.0.1:1031 21 OK 22 DEV_TESTER.RES1: WRITE Parameter SB.QI=1 22 OK 23 DEV_TESTER.RES1: CREATE FB EQUALS:FB_LABEL 23 OK 24 DEV_TESTER.RES1: WRITE Parameter EQUALS.QI=1 24 OK 25 DEV_TESTER.RES1: WRITE Parameter EQUALS.LABEL== 25 OK 26 DEV_TESTER.RES1: CREATE FB OUT:OUT_ANY 26 OK 27 DEV_TESTER.RES1: WRITE Parameter OUT.QI=1 27 OK 28 DEV_TESTER.RES1: WRITE Parameter OUT.TYPE=REAL 28 OK 29 DEV_TESTER.RES1: WRITE Parameter OUT.W=10 29 OK 30 DEV_TESTER.RES1: CREATE Connection START.COLD>IN1.INIT 30 OK 31 DEV_TESTER.RES1: CREATE Connection START.WARM>IN1.INIT 31 OK 32 DEV_TESTER.RES1: CREATE Connection IN1.INITO>PLUS.INIT 32 OK 33 DEV_TESTER.RES1: CREATE Connection PLUS.INITO>IN2.INIT 33 OK 34 DEV_TESTER.RES1: CREATE Connection IN2.INITO>PUB.INIT 34 OK 35 DEV_TESTER.RES1: CREATE Connection PUB.INITO>SB.INIT 35 OK 36 DEV_TESTER.RES1: CREATE Connection SB.INITO>EQUALS.INIT 36 OK 37 DEV_TESTER.RES1: CREATE Connection EQUALS.INITO>OUT.INIT 37 OK 38 DEV_TESTER.RES1: CREATE Connection IN1.IND>IN2.REQ 38 OK 39 DEV_TESTER.RES1: CREATE Connection IN2.IND>PUB.REQ 39 OK 40 DEV_TESTER.RES1: CREATE Connection SB.IND>OUT.REQ 40 OK 41 DEV_TESTER.RES1: CREATE Connection IN1.OUT>PUB.SD_1 41 OK 42 DEV_TESTER.RES1: CREATE Connection IN2.OUT>PUB.SD_2 42 OK 43 DEV_TESTER.RES1: CREATE Connection SB.RD_1>OUT.IN 43 OK 44 DEV_TESTER: CREATE FB RES2:PANEL_RESOURCE 44 OK 45 DEV_TESTER.RES2: CREATE FB RUNSTOP:RADIO_BOOL 45 OK 46 DEV_TESTER.RES2: WRITE Parameter RUNSTOP.QI=1 46 OK 47 DEV_TESTER.RES2: WRITE Parameter RUNSTOP.LABEL0=STOP 47 OK 48 DEV_TESTER.RES2: WRITE Parameter RUNSTOP.LABEL1=RUN 48 OK 49 DEV_TESTER.RES2: CREATE FB RESET:IN_EVENT 49 OK 50 DEV_TESTER.RES2: WRITE Parameter RESET.QI=1 50 OK 51 DEV_TESTER.RES2: WRITE Parameter RESET.LABEL=RESET 51 OK 52 DEV_TESTER.RES2: CREATE FB PUB0:PUBLISH_0 52 OK 53 DEV_TESTER.RES2: WRITE Parameter PUB0.QI=1 53 OK 54 DEV_TESTER.RES2: WRITE Parameter PUB0.ID=225.0.0.5:1029 54 OK 55 DEV_TESTER.RES2: CREATE FB PV:IN_ANY 55 OK 56 DEV_TESTER.RES2: WRITE Parameter PV.QI=1 56 OK 57 DEV_TESTER.RES2: WRITE Parameter PV.IVAL=10 57 OK 58 DEV_TESTER.RES2: WRITE Parameter PV.TYPE=UINT 58 OK 59 DEV_TESTER.RES2: WRITE Parameter PV.W=10 59 OK 60 DEV_TESTER.RES2: CREATE FB PV_LBL:FB_LABEL 60 OK 61 DEV_TESTER.RES2: WRITE Parameter PV_LBL.QI=1 61 OK 62 DEV_TESTER.RES2: WRITE Parameter PV_LBL.LABEL=PV 62 OK 63 DEV_TESTER.RES2: CREATE FB DT:IN_ANY 63 OK 64 DEV_TESTER.RES2: WRITE Parameter DT.QI=1 64 OK 65 DEV_TESTER.RES2: WRITE Parameter DT.TYPE=TIME 65 OK 66 DEV_TESTER.RES2: WRITE Parameter DT.IVAL=t#500ms 66 OK 67 DEV_TESTER.RES2: WRITE Parameter DT.W=10 67 OK 68 DEV_TESTER.RES2: CREATE FB DT_LBL:FB_LABEL 68 OK 69 DEV_TESTER.RES2: WRITE Parameter DT_LBL.QI=1 69 OK 70 DEV_TESTER.RES2: WRITE Parameter DT_LBL.LABEL=DT 70 OK 71 DEV_TESTER.RES2: CREATE FB PUB:PUBLISH_3 71 OK 72 DEV_TESTER.RES2: WRITE Parameter PUB.QI=1 72 OK 73 DEV_TESTER.RES2: WRITE Parameter PUB.ID=225.0.0.3:1027 73 OK 74 DEV_TESTER.RES2: CREATE FB SB:SUBSCRIBE_2 74 OK 75 DEV_TESTER.RES2: WRITE Parameter SB.QI=1 75 OK 76 DEV_TESTER.RES2: WRITE Parameter SB.ID=225.0.0.4:1028 76 OK 77 DEV_TESTER.RES2: CREATE FB Q:OUT_BOOL 77 OK 78 DEV_TESTER.RES2: WRITE Parameter Q.QI=1 78 OK 79 DEV_TESTER.RES2: WRITE Parameter Q.LABEL="Q" 79 OK 80 DEV_TESTER.RES2: WRITE Parameter Q.C0=COLOR#red 80 OK 81 DEV_TESTER.RES2: WRITE Parameter Q.C1=COLOR#green 81 OK 82 DEV_TESTER.RES2: CREATE FB CV:OUT_ANY 82 OK 83 DEV_TESTER.RES2: WRITE Parameter CV.QI=1 83 OK 84 DEV_TESTER.RES2: WRITE Parameter CV.TYPE=UINT 84 OK 85 DEV_TESTER.RES2: WRITE Parameter CV.W=10 85 OK 86 DEV_TESTER.RES2: CREATE Connection START.COLD>RUNSTOP.INIT 86 OK 87 DEV_TESTER.RES2: CREATE Connection START.WARM>RUNSTOP.INIT 87 OK 88 DEV_TESTER.RES2: CREATE Connection RUNSTOP.INITO>RESET.INIT 88 OK 89 DEV_TESTER.RES2: CREATE Connection RESET.INITO>PUB0.INIT 89 OK 90 DEV_TESTER.RES2: CREATE Connection PUB0.INITO>PV.INIT 90 OK 91 DEV_TESTER.RES2: CREATE Connection PV.INITO>PV_LBL.INIT 91 OK 92 DEV_TESTER.RES2: CREATE Connection PV_LBL.INITO>DT.INIT 92 OK 93 DEV_TESTER.RES2: CREATE Connection DT.INITO>DT_LBL.INIT 93 OK 94 DEV_TESTER.RES2: CREATE Connection DT_LBL.INITO>PUB.INIT 94 OK 95 DEV_TESTER.RES2: CREATE Connection PUB.INITO>SB.INIT 95 OK 96 DEV_TESTER.RES2: CREATE Connection SB.INITO>CV.INIT 96 OK 97 DEV_TESTER.RES2: CREATE Connection CV.INITO>Q.INIT 97 OK 98 DEV_TESTER.RES2: CREATE Connection RUNSTOP.IND>PV.REQ 98 OK 99 DEV_TESTER.RES2: CREATE Connection RESET.IND>PUB0.REQ 99 OK 100 DEV_TESTER.RES2: CREATE Connection PV.IND>DT.REQ 100 OK 101 DEV_TESTER.RES2: CREATE Connection DT.IND>PUB.REQ 101 OK 102 DEV_TESTER.RES2: CREATE Connection SB.IND>Q.REQ 102 OK 103 DEV_TESTER.RES2: CREATE Connection Q.CNF>CV.REQ 103 OK 104 DEV_TESTER.RES2: CREATE Connection RUNSTOP.OUT>PUB.SD_1 104 OK 105 DEV_TESTER.RES2: CREATE Connection PV.OUT>PUB.SD_3 105 OK 106 DEV_TESTER.RES2: CREATE Connection DT.OUT>PUB.SD_2 106 OK 107 DEV_TESTER.RES2: CREATE Connection SB.RD_1>Q.IN 107 OK 108 DEV_TESTER.RES2: CREATE Connection SB.RD_2>CV.IN 108 OK 109 DEV_TESTER: START FB : 109 OK FBStatus RUNNING Creating DEV1:RMT_DEV... 110 DEV1: WRITE Parameter MGR_ID=fbmgt2://localhost:61499 110 OK 111 DEV1: CREATE FB RES1:EMB_RES 111 OK 112 DEV1.RES1: CREATE FB FF:E_SR 112 OK 113 DEV1.RES1: CREATE FB SB:SUBSCRIBE_2 113 OK 114 DEV1.RES1: WRITE Parameter SB.ID=225.0.0.2:1032 114 OK 115 DEV1.RES1: CREATE FB AD:FB_ADD_REAL 115 OK 116 DEV1.RES1: CREATE FB PUB:PUBLISH_1 116 OK 117 DEV1.RES1: WRITE Parameter PUB.ID=225.0.0.1:1031 117 OK 118 DEV1.RES1: CREATE Connection START.COLD>FF.S 118 OK 119 DEV1.RES1: CREATE Connection START.WARM>FF.S 119 OK 120 DEV1.RES1: CREATE Connection START.STOP>FF.R 120 OK 121 DEV1.RES1: CREATE Connection FF.EO>SB.INIT 121 OK 122 DEV1.RES1: CREATE Connection SB.INITO>PUB.INIT 122 OK 123 DEV1.RES1: CREATE Connection SB.IND>AD.REQ 123 OK 124 DEV1.RES1: CREATE Connection AD.CNF>PUB.REQ 124 OK 125 DEV1.RES1: CREATE Connection SB.RD_1>AD.IN1 125 OK 126 DEV1.RES1: CREATE Connection SB.RD_2>AD.IN2 126 OK 127 DEV1.RES1: CREATE Connection AD.OUT>PUB.SD_1 127 OK 128 DEV1.RES1: CREATE Connection FF.Q>SB.QI 128 OK 129 DEV1.RES1: CREATE Connection SB.QO>PUB.QI 129 OK 130 DEV1: CREATE FB RES2:EMB_RES 130 OK 131 DEV1.RES2: CREATE FB SB:SUBSCRIBE_3 131 OK 132 DEV1.RES2: WRITE Parameter SB.ID="225.0.0.3:1027" 132 OK 133 DEV1.RES2: CREATE FB RST:SUBSCRIBE_0 133 OK 134 DEV1.RES2: WRITE Parameter RST.ID="225.0.0.5:1029" 134 OK 135 DEV1.RES2: CREATE FB RUNSTOP:E_SWITCH 135 OK 136 DEV1.RES2: CREATE FB CLK:E_CYCLE 136 OK 137 DEV1.RES2: CREATE FB CTR:E_CTU 137 OK 138 DEV1.RES2: CREATE FB PUB:PUBLISH_2 138 OK 139 DEV1.RES2: WRITE Parameter PUB.ID="225.0.0.4:1028" 139 OK 140 DEV1.RES2: CREATE FB FF:E_SR 140 OK 141 DEV1.RES2: CREATE Connection RST.INITO>SB.INIT 141 OK 142 DEV1.RES2: CREATE Connection SB.INITO>PUB.INIT 142 OK 143 DEV1.RES2: CREATE Connection SB.IND>RUNSTOP.EI 143 OK 144 DEV1.RES2: CREATE Connection RUNSTOP.EO0>CLK.STOP 144 OK 145 DEV1.RES2: CREATE Connection RUNSTOP.EO1>CLK.START 145 OK 146 DEV1.RES2: CREATE Connection CLK.EO>CTR.CU 146 OK 147 DEV1.RES2: CREATE Connection RST.IND>CTR.R 147 OK 148 DEV1.RES2: CREATE Connection CTR.CUO>PUB.REQ 148 OK 149 DEV1.RES2: CREATE Connection CTR.RO>PUB.REQ 149 OK 150 DEV1.RES2: CREATE Connection START.COLD>FF.S 150 OK 151 DEV1.RES2: CREATE Connection START.WARM>FF.S 151 OK 152 DEV1.RES2: CREATE Connection START.STOP>FF.R 152 OK 153 DEV1.RES2: CREATE Connection FF.EO>RST.INIT 153 OK 154 DEV1.RES2: CREATE Connection SB.RD_1>RUNSTOP.G 154 OK 155 DEV1.RES2: CREATE Connection SB.RD_2>CLK.DT 155 OK 156 DEV1.RES2: CREATE Connection SB.RD_3>CTR.PV 156 OK 157 DEV1.RES2: CREATE Connection CTR.Q>PUB.SD_1 157 OK 158 DEV1.RES2: CREATE Connection CTR.CV>PUB.SD_2 158 OK 159 DEV1.RES2: CREATE Connection FF.Q>RST.QI 159 OK 160 DEV1.RES2: CREATE Connection RST.QO>SB.QI 160 OK 161 DEV1.RES2: CREATE Connection SB.QO>PUB.QI 161 OK 162 DEV1: START FB : 162 OK FBStatus RUNNING RMT_DEV_TEST Launched! Disconnecting Remote Devices... Done. |
: <Request ID="1" Action="CREATE" > <FB Name="DEV_TESTER" Type="FRAME_DEVICE" /> </Request> : <Response ID="1" /> : <Request ID="2" Action="WRITE" > <Parameter Reference="DEV_TESTER.BOUNDS" Value="[50,50,190,250]" /> </Request> : <Response ID="2" /> : <Request ID="3" Action="WRITE" > <Parameter Reference="DEV_TESTER.GRID" Value="[2,1]" /> </Request> : <Response ID="3" /> DEV_TESTER: <Request ID="4" Action="CREATE" > <FB Name="RES1" Type="PANEL_RESOURCE" /> </Request> DEV_TESTER: <Response ID="4" /> DEV_TESTER.RES1: <Request ID="5" Action="CREATE" > <FB Name="IN1" Type="IN_ANY" /> </Request> DEV_TESTER.RES1: <Response ID="5" /> DEV_TESTER.RES1: <Request ID="6" Action="WRITE" > <Parameter Reference="IN1.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="6" /> DEV_TESTER.RES1: <Request ID="7" Action="WRITE" > <Parameter Reference="IN1.TYPE" Value="REAL" /> </Request> DEV_TESTER.RES1: <Response ID="7" /> DEV_TESTER.RES1: <Request ID="8" Action="WRITE" > <Parameter Reference="IN1.IVAL" Value="10.0" /> </Request> DEV_TESTER.RES1: <Response ID="8" /> DEV_TESTER.RES1: <Request ID="9" Action="WRITE" > <Parameter Reference="IN1.W" Value="10" /> </Request> DEV_TESTER.RES1: <Response ID="9" /> DEV_TESTER.RES1: <Request ID="10" Action="CREATE" > <FB Name="PLUS" Type="FB_LABEL" /> </Request> DEV_TESTER.RES1: <Response ID="10" /> DEV_TESTER.RES1: <Request ID="11" Action="WRITE" > <Parameter Reference="PLUS.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="11" /> DEV_TESTER.RES1: <Request ID="12" Action="WRITE" > <Parameter Reference="PLUS.LABEL" Value="+" /> </Request> DEV_TESTER.RES1: <Response ID="12" /> DEV_TESTER.RES1: <Request ID="13" Action="CREATE" > <FB Name="IN2" Type="IN_ANY" /> </Request> DEV_TESTER.RES1: <Response ID="13" /> DEV_TESTER.RES1: <Request ID="14" Action="WRITE" > <Parameter Reference="IN2.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="14" /> DEV_TESTER.RES1: <Request ID="15" Action="WRITE" > <Parameter Reference="IN2.TYPE" Value="REAL" /> </Request> DEV_TESTER.RES1: <Response ID="15" /> DEV_TESTER.RES1: <Request ID="16" Action="WRITE" > <Parameter Reference="IN2.IVAL" Value="20.0" /> </Request> DEV_TESTER.RES1: <Response ID="16" /> DEV_TESTER.RES1: <Request ID="17" Action="WRITE" > <Parameter Reference="IN2.W" Value="10" /> </Request> DEV_TESTER.RES1: <Response ID="17" /> DEV_TESTER.RES1: <Request ID="18" Action="CREATE" > <FB Name="PUB" Type="PUBLISH_2" /> </Request> DEV_TESTER.RES1: <Response ID="18" /> DEV_TESTER.RES1: <Request ID="19" Action="WRITE" > <Parameter Reference="PUB.ID" Value="225.0.0.2:1032" /> </Request> DEV_TESTER.RES1: <Response ID="19" /> DEV_TESTER.RES1: <Request ID="20" Action="WRITE" > <Parameter Reference="PUB.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="20" /> DEV_TESTER.RES1: <Request ID="21" Action="CREATE" > <FB Name="SB" Type="SUBSCRIBE_1" /> </Request> DEV_TESTER.RES1: <Response ID="21" /> DEV_TESTER.RES1: <Request ID="22" Action="WRITE" > <Parameter Reference="SB.ID" Value="225.0.0.1:1031" /> </Request> DEV_TESTER.RES1: <Response ID="22" /> DEV_TESTER.RES1: <Request ID="23" Action="WRITE" > <Parameter Reference="SB.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="23" /> DEV_TESTER.RES1: <Request ID="24" Action="CREATE" > <FB Name="EQUALS" Type="FB_LABEL" /> </Request> DEV_TESTER.RES1: <Response ID="24" /> DEV_TESTER.RES1: <Request ID="25" Action="WRITE" > <Parameter Reference="EQUALS.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="25" /> DEV_TESTER.RES1: <Request ID="26" Action="WRITE" > <Parameter Reference="EQUALS.LABEL" Value="=" /> </Request> DEV_TESTER.RES1: <Response ID="26" /> DEV_TESTER.RES1: <Request ID="27" Action="CREATE" > <FB Name="OUT" Type="OUT_ANY" /> </Request> DEV_TESTER.RES1: <Response ID="27" /> DEV_TESTER.RES1: <Request ID="28" Action="WRITE" > <Parameter Reference="OUT.QI" Value="1" /> </Request> DEV_TESTER.RES1: <Response ID="28" /> DEV_TESTER.RES1: <Request ID="29" Action="WRITE" > <Parameter Reference="OUT.TYPE" Value="REAL" /> </Request> DEV_TESTER.RES1: <Response ID="29" /> DEV_TESTER.RES1: <Request ID="30" Action="WRITE" > <Parameter Reference="OUT.W" Value="10" /> </Request> DEV_TESTER.RES1: <Response ID="30" /> DEV_TESTER.RES1: <Request ID="31" Action="CREATE" > <Connection Source="START.COLD" Destination="IN1.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="31" /> DEV_TESTER.RES1: <Request ID="32" Action="CREATE" > <Connection Source="START.WARM" Destination="IN1.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="32" /> DEV_TESTER.RES1: <Request ID="33" Action="CREATE" > <Connection Source="IN1.INITO" Destination="PLUS.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="33" /> DEV_TESTER.RES1: <Request ID="34" Action="CREATE" > <Connection Source="PLUS.INITO" Destination="IN2.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="34" /> DEV_TESTER.RES1: <Request ID="35" Action="CREATE" > <Connection Source="IN2.INITO" Destination="PUB.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="35" /> DEV_TESTER.RES1: <Request ID="36" Action="CREATE" > <Connection Source="PUB.INITO" Destination="SB.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="36" /> DEV_TESTER.RES1: <Request ID="37" Action="CREATE" > <Connection Source="SB.INITO" Destination="EQUALS.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="37" /> DEV_TESTER.RES1: <Request ID="38" Action="CREATE" > <Connection Source="EQUALS.INITO" Destination="OUT.INIT" /> </Request> DEV_TESTER.RES1: <Response ID="38" /> DEV_TESTER.RES1: <Request ID="39" Action="CREATE" > <Connection Source="IN1.IND" Destination="IN2.REQ" /> </Request> DEV_TESTER.RES1: <Response ID="39" /> DEV_TESTER.RES1: <Request ID="40" Action="CREATE" > <Connection Source="IN2.IND" Destination="PUB.REQ" /> </Request> DEV_TESTER.RES1: <Response ID="40" /> DEV_TESTER.RES1: <Request ID="41" Action="CREATE" > <Connection Source="SB.IND" Destination="OUT.REQ" /> </Request> DEV_TESTER.RES1: <Response ID="41" /> DEV_TESTER.RES1: <Request ID="42" Action="CREATE" > <Connection Source="IN1.OUT" Destination="PUB.SD_1" /> </Request> DEV_TESTER.RES1: <Response ID="42" /> DEV_TESTER.RES1: <Request ID="43" Action="CREATE" > <Connection Source="IN2.OUT" Destination="PUB.SD_2" /> </Request> DEV_TESTER.RES1: <Response ID="43" /> DEV_TESTER.RES1: <Request ID="44" Action="CREATE" > <Connection Source="SB.RD_1" Destination="OUT.IN" /> </Request> DEV_TESTER.RES1: <Response ID="44" /> DEV_TESTER: <Request ID="45" Action="CREATE" > <FB Name="RES2" Type="PANEL_RESOURCE" /> </Request> DEV_TESTER: <Response ID="45" /> DEV_TESTER.RES2: <Request ID="46" Action="CREATE" > <FB Name="RUNSTOP" Type="RADIO_BOOL" /> </Request> DEV_TESTER.RES2: <Response ID="46" /> DEV_TESTER.RES2: <Request ID="47" Action="WRITE" > <Parameter Reference="RUNSTOP.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="47" /> DEV_TESTER.RES2: <Request ID="48" Action="WRITE" > <Parameter Reference="RUNSTOP.LABEL0" Value="STOP" /> </Request> DEV_TESTER.RES2: <Response ID="48" /> DEV_TESTER.RES2: <Request ID="49" Action="WRITE" > <Parameter Reference="RUNSTOP.LABEL1" Value="RUN" /> </Request> DEV_TESTER.RES2: <Response ID="49" /> DEV_TESTER.RES2: <Request ID="50" Action="CREATE" > <FB Name="RESET" Type="IN_EVENT" /> </Request> DEV_TESTER.RES2: <Response ID="50" /> DEV_TESTER.RES2: <Request ID="51" Action="WRITE" > <Parameter Reference="RESET.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="51" /> DEV_TESTER.RES2: <Request ID="52" Action="WRITE" > <Parameter Reference="RESET.LABEL" Value="RESET" /> </Request> DEV_TESTER.RES2: <Response ID="52" /> DEV_TESTER.RES2: <Request ID="53" Action="CREATE" > <FB Name="PUB0" Type="PUBLISH_0" /> </Request> DEV_TESTER.RES2: <Response ID="53" /> DEV_TESTER.RES2: <Request ID="54" Action="WRITE" > <Parameter Reference="PUB0.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="54" /> DEV_TESTER.RES2: <Request ID="55" Action="WRITE" > <Parameter Reference="PUB0.ID" Value="225.0.0.5:1029" /> </Request> DEV_TESTER.RES2: <Response ID="55" /> DEV_TESTER.RES2: <Request ID="56" Action="CREATE" > <FB Name="PV" Type="IN_ANY" /> </Request> DEV_TESTER.RES2: <Response ID="56" /> DEV_TESTER.RES2: <Request ID="57" Action="WRITE" > <Parameter Reference="PV.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="57" /> DEV_TESTER.RES2: <Request ID="58" Action="WRITE" > <Parameter Reference="PV.IVAL" Value="10" /> </Request> DEV_TESTER.RES2: <Response ID="58" /> DEV_TESTER.RES2: <Request ID="59" Action="WRITE" > <Parameter Reference="PV.TYPE" Value="UINT" /> </Request> DEV_TESTER.RES2: <Response ID="59" /> DEV_TESTER.RES2: <Request ID="60" Action="WRITE" > <Parameter Reference="PV.W" Value="10" /> </Request> DEV_TESTER.RES2: <Response ID="60" /> DEV_TESTER.RES2: <Request ID="61" Action="CREATE" > <FB Name="PV_LBL" Type="FB_LABEL" /> </Request> DEV_TESTER.RES2: <Response ID="61" /> DEV_TESTER.RES2: <Request ID="62" Action="WRITE" > <Parameter Reference="PV_LBL.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="62" /> DEV_TESTER.RES2: <Request ID="63" Action="WRITE" > <Parameter Reference="PV_LBL.LABEL" Value="PV" /> </Request> DEV_TESTER.RES2: <Response ID="63" /> DEV_TESTER.RES2: <Request ID="64" Action="CREATE" > <FB Name="DT" Type="IN_ANY" /> </Request> DEV_TESTER.RES2: <Response ID="64" /> DEV_TESTER.RES2: <Request ID="65" Action="WRITE" > <Parameter Reference="DT.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="65" /> DEV_TESTER.RES2: <Request ID="66" Action="WRITE" > <Parameter Reference="DT.TYPE" Value="TIME" /> </Request> DEV_TESTER.RES2: <Response ID="66" /> DEV_TESTER.RES2: <Request ID="67" Action="WRITE" > <Parameter Reference="DT.IVAL" Value="t#500ms" /> </Request> DEV_TESTER.RES2: <Response ID="67" /> DEV_TESTER.RES2: <Request ID="68" Action="WRITE" > <Parameter Reference="DT.W" Value="10" /> </Request> DEV_TESTER.RES2: <Response ID="68" /> DEV_TESTER.RES2: <Request ID="69" Action="CREATE" > <FB Name="DT_LBL" Type="FB_LABEL" /> </Request> DEV_TESTER.RES2: <Response ID="69" /> DEV_TESTER.RES2: <Request ID="70" Action="WRITE" > <Parameter Reference="DT_LBL.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="70" /> DEV_TESTER.RES2: <Request ID="71" Action="WRITE" > <Parameter Reference="DT_LBL.LABEL" Value="DT" /> </Request> DEV_TESTER.RES2: <Response ID="71" /> DEV_TESTER.RES2: <Request ID="72" Action="CREATE" > <FB Name="PUB" Type="PUBLISH_3" /> </Request> DEV_TESTER.RES2: <Response ID="72" /> DEV_TESTER.RES2: <Request ID="73" Action="WRITE" > <Parameter Reference="PUB.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="73" /> DEV_TESTER.RES2: <Request ID="74" Action="WRITE" > <Parameter Reference="PUB.ID" Value="225.0.0.3:1027" /> </Request> DEV_TESTER.RES2: <Response ID="74" /> DEV_TESTER.RES2: <Request ID="75" Action="CREATE" > <FB Name="SB" Type="SUBSCRIBE_2" /> </Request> DEV_TESTER.RES2: <Response ID="75" /> DEV_TESTER.RES2: <Request ID="76" Action="WRITE" > <Parameter Reference="SB.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="76" /> DEV_TESTER.RES2: <Request ID="77" Action="WRITE" > <Parameter Reference="SB.ID" Value="225.0.0.4:1028" /> </Request> DEV_TESTER.RES2: <Response ID="77" /> DEV_TESTER.RES2: <Request ID="78" Action="CREATE" > <FB Name="Q" Type="OUT_BOOL" /> </Request> DEV_TESTER.RES2: <Response ID="78" /> DEV_TESTER.RES2: <Request ID="79" Action="WRITE" > <Parameter Reference="Q.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="79" /> DEV_TESTER.RES2: <Request ID="80" Action="WRITE" > <Parameter Reference="Q.LABEL" Value=""Q"" /> </Request> DEV_TESTER.RES2: <Response ID="80" /> DEV_TESTER.RES2: <Request ID="81" Action="WRITE" > <Parameter Reference="Q.C0" Value="COLOR#red" /> </Request> DEV_TESTER.RES2: <Response ID="81" /> DEV_TESTER.RES2: <Request ID="82" Action="WRITE" > <Parameter Reference="Q.C1" Value="COLOR#green" /> </Request> DEV_TESTER.RES2: <Response ID="82" /> DEV_TESTER.RES2: <Request ID="83" Action="CREATE" > <FB Name="CV" Type="OUT_ANY" /> </Request> DEV_TESTER.RES2: <Response ID="83" /> DEV_TESTER.RES2: <Request ID="84" Action="WRITE" > <Parameter Reference="CV.QI" Value="1" /> </Request> DEV_TESTER.RES2: <Response ID="84" /> DEV_TESTER.RES2: <Request ID="85" Action="WRITE" > <Parameter Reference="CV.TYPE" Value="UINT" /> </Request> DEV_TESTER.RES2: <Response ID="85" /> DEV_TESTER.RES2: <Request ID="86" Action="WRITE" > <Parameter Reference="CV.W" Value="10" /> </Request> DEV_TESTER.RES2: <Response ID="86" /> DEV_TESTER.RES2: <Request ID="87" Action="CREATE" > <Connection Source="START.COLD" Destination="RUNSTOP.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="87" /> DEV_TESTER.RES2: <Request ID="88" Action="CREATE" > <Connection Source="START.WARM" Destination="RUNSTOP.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="88" /> DEV_TESTER.RES2: <Request ID="89" Action="CREATE" > <Connection Source="RUNSTOP.INITO" Destination="RESET.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="89" /> DEV_TESTER.RES2: <Request ID="90" Action="CREATE" > <Connection Source="RESET.INITO" Destination="PUB0.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="90" /> DEV_TESTER.RES2: <Request ID="91" Action="CREATE" > <Connection Source="PUB0.INITO" Destination="PV.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="91" /> DEV_TESTER.RES2: <Request ID="92" Action="CREATE" > <Connection Source="PV.INITO" Destination="PV_LBL.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="92" /> DEV_TESTER.RES2: <Request ID="93" Action="CREATE" > <Connection Source="PV_LBL.INITO" Destination="DT.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="93" /> DEV_TESTER.RES2: <Request ID="94" Action="CREATE" > <Connection Source="DT.INITO" Destination="DT_LBL.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="94" /> DEV_TESTER.RES2: <Request ID="95" Action="CREATE" > <Connection Source="DT_LBL.INITO" Destination="PUB.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="95" /> DEV_TESTER.RES2: <Request ID="96" Action="CREATE" > <Connection Source="PUB.INITO" Destination="SB.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="96" /> DEV_TESTER.RES2: <Request ID="97" Action="CREATE" > <Connection Source="SB.INITO" Destination="CV.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="97" /> DEV_TESTER.RES2: <Request ID="98" Action="CREATE" > <Connection Source="CV.INITO" Destination="Q.INIT" /> </Request> DEV_TESTER.RES2: <Response ID="98" /> DEV_TESTER.RES2: <Request ID="99" Action="CREATE" > <Connection Source="RUNSTOP.IND" Destination="PV.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="99" /> DEV_TESTER.RES2: <Request ID="100" Action="CREATE" > <Connection Source="RESET.IND" Destination="PUB0.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="100" /> DEV_TESTER.RES2: <Request ID="101" Action="CREATE" > <Connection Source="PV.IND" Destination="DT.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="101" /> DEV_TESTER.RES2: <Request ID="102" Action="CREATE" > <Connection Source="DT.IND" Destination="PUB.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="102" /> DEV_TESTER.RES2: <Request ID="103" Action="CREATE" > <Connection Source="SB.IND" Destination="Q.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="103" /> DEV_TESTER.RES2: <Request ID="104" Action="CREATE" > <Connection Source="Q.CNF" Destination="CV.REQ" /> </Request> DEV_TESTER.RES2: <Response ID="104" /> DEV_TESTER.RES2: <Request ID="105" Action="CREATE" > <Connection Source="RUNSTOP.OUT" Destination="PUB.SD_1" /> </Request> DEV_TESTER.RES2: <Response ID="105" /> DEV_TESTER.RES2: <Request ID="106" Action="CREATE" > <Connection Source="PV.OUT" Destination="PUB.SD_3" /> </Request> DEV_TESTER.RES2: <Response ID="106" /> DEV_TESTER.RES2: <Request ID="107" Action="CREATE" > <Connection Source="DT.OUT" Destination="PUB.SD_2" /> </Request> DEV_TESTER.RES2: <Response ID="107" /> DEV_TESTER.RES2: <Request ID="108" Action="CREATE" > <Connection Source="SB.RD_1" Destination="Q.IN" /> </Request> DEV_TESTER.RES2: <Response ID="108" /> DEV_TESTER.RES2: <Request ID="109" Action="CREATE" > <Connection Source="SB.RD_2" Destination="CV.IN" /> </Request> DEV_TESTER.RES2: <Response ID="109" /> : <Request ID="110" Action="CREATE" > <FB Name="DEV1" Type="RMT_PRXY" /> </Request> : <Response ID="110" /> DEV1: <Request ID="111" Action="CREATE" > <FB Name="RES1" Type="EMB_RES" /> </Request> DEV1: <Response ID="111" /> DEV1.RES1: <Request ID="112" Action="CREATE" > <FB Name="FF" Type="E_SR" /> </Request> DEV1.RES1: <Response ID="112" /> DEV1.RES1: <Request ID="113" Action="CREATE" > <FB Name="SB" Type="SUBSCRIBE_2" /> </Request> DEV1.RES1: <Response ID="113" /> DEV1.RES1: <Request ID="114" Action="WRITE" > <Parameter Reference="SB.ID" Value="225.0.0.2:1032" /> </Request> DEV1.RES1: <Response ID="114" /> DEV1.RES1: <Request ID="115" Action="CREATE" > <FB Name="AD" Type="FB_ADD_REAL" /> </Request> DEV1.RES1: <Response ID="115" /> DEV1.RES1: <Request ID="116" Action="CREATE" > <FB Name="PUB" Type="PUBLISH_1" /> </Request> DEV1.RES1: <Response ID="116" /> DEV1.RES1: <Request ID="117" Action="WRITE" > <Parameter Reference="PUB.ID" Value="225.0.0.1:1031" /> </Request> DEV1.RES1: <Response ID="117" /> DEV1.RES1: <Request ID="118" Action="CREATE" > <Connection Source="START.COLD" Destination="FF.S" /> </Request> DEV1.RES1: <Response ID="118" /> DEV1.RES1: <Request ID="119" Action="CREATE" > <Connection Source="START.WARM" Destination="FF.S" /> </Request> DEV1.RES1: <Response ID="119" /> DEV1.RES1: <Request ID="120" Action="CREATE" > <Connection Source="START.STOP" Destination="FF.R" /> </Request> DEV1.RES1: <Response ID="120" /> DEV1.RES1: <Request ID="121" Action="CREATE" > <Connection Source="FF.EO" Destination="SB.INIT" /> </Request> DEV1.RES1: <Response ID="121" /> DEV1.RES1: <Request ID="122" Action="CREATE" > <Connection Source="SB.INITO" Destination="PUB.INIT" /> </Request> DEV1.RES1: <Response ID="122" /> DEV1.RES1: <Request ID="123" Action="CREATE" > <Connection Source="SB.IND" Destination="AD.REQ" /> </Request> DEV1.RES1: <Response ID="123" /> DEV1.RES1: <Request ID="124" Action="CREATE" > <Connection Source="AD.CNF" Destination="PUB.REQ" /> </Request> DEV1.RES1: <Response ID="124" /> DEV1.RES1: <Request ID="125" Action="CREATE" > <Connection Source="SB.RD_1" Destination="AD.IN1" /> </Request> DEV1.RES1: <Response ID="125" /> DEV1.RES1: <Request ID="126" Action="CREATE" > <Connection Source="SB.RD_2" Destination="AD.IN2" /> </Request> DEV1.RES1: <Response ID="126" /> DEV1.RES1: <Request ID="127" Action="CREATE" > <Connection Source="AD.OUT" Destination="PUB.SD_1" /> </Request> DEV1.RES1: <Response ID="127" /> DEV1.RES1: <Request ID="128" Action="CREATE" > <Connection Source="FF.Q" Destination="SB.QI" /> </Request> DEV1.RES1: <Response ID="128" /> DEV1.RES1: <Request ID="129" Action="CREATE" > <Connection Source="SB.QO" Destination="PUB.QI" /> </Request> DEV1.RES1: <Response ID="129" /> DEV1: <Request ID="130" Action="CREATE" > <FB Name="RES2" Type="EMB_RES" /> </Request> DEV1: <Response ID="130" /> DEV1.RES2: <Request ID="131" Action="CREATE" > <FB Name="SB" Type="SUBSCRIBE_3" /> </Request> DEV1.RES2: <Response ID="131" /> DEV1.RES2: <Request ID="132" Action="WRITE" > <Parameter Reference="SB.ID" Value=""225.0.0.3:1027"" /> </Request> DEV1.RES2: <Response ID="132" /> DEV1.RES2: <Request ID="133" Action="CREATE" > <FB Name="RST" Type="SUBSCRIBE_0" /> </Request> DEV1.RES2: <Response ID="133" /> DEV1.RES2: <Request ID="134" Action="WRITE" > <Parameter Reference="RST.ID" Value=""225.0.0.5:1029"" /> </Request> DEV1.RES2: <Response ID="134" /> DEV1.RES2: <Request ID="135" Action="CREATE" > <FB Name="RUNSTOP" Type="E_SWITCH" /> </Request> DEV1.RES2: <Response ID="135" /> DEV1.RES2: <Request ID="136" Action="CREATE" > <FB Name="CLK" Type="E_CYCLE" /> </Request> DEV1.RES2: <Response ID="136" /> DEV1.RES2: <Request ID="137" Action="CREATE" > <FB Name="CTR" Type="E_CTU" /> </Request> DEV1.RES2: <Response ID="137" /> DEV1.RES2: <Request ID="138" Action="CREATE" > <FB Name="PUB" Type="PUBLISH_2" /> </Request> DEV1.RES2: <Response ID="138" /> DEV1.RES2: <Request ID="139" Action="WRITE" > <Parameter Reference="PUB.ID" Value=""225.0.0.4:1028"" /> </Request> DEV1.RES2: <Response ID="139" /> DEV1.RES2: <Request ID="140" Action="CREATE" > <FB Name="FF" Type="E_SR" /> </Request> DEV1.RES2: <Response ID="140" /> DEV1.RES2: <Request ID="141" Action="CREATE" > <Connection Source="RST.INITO" Destination="SB.INIT" /> </Request> DEV1.RES2: <Response ID="141" /> DEV1.RES2: <Request ID="142" Action="CREATE" > <Connection Source="SB.INITO" Destination="PUB.INIT" /> </Request> DEV1.RES2: <Response ID="142" /> DEV1.RES2: <Request ID="143" Action="CREATE" > <Connection Source="SB.IND" Destination="RUNSTOP.EI" /> </Request> DEV1.RES2: <Response ID="143" /> DEV1.RES2: <Request ID="144" Action="CREATE" > <Connection Source="RUNSTOP.EO0" Destination="CLK.STOP" /> </Request> DEV1.RES2: <Response ID="144" /> DEV1.RES2: <Request ID="145" Action="CREATE" > <Connection Source="RUNSTOP.EO1" Destination="CLK.START" /> </Request> DEV1.RES2: <Response ID="145" /> DEV1.RES2: <Request ID="146" Action="CREATE" > <Connection Source="CLK.EO" Destination="CTR.CU" /> </Request> DEV1.RES2: <Response ID="146" /> DEV1.RES2: <Request ID="147" Action="CREATE" > <Connection Source="RST.IND" Destination="CTR.R" /> </Request> DEV1.RES2: <Response ID="147" /> DEV1.RES2: <Request ID="148" Action="CREATE" > <Connection Source="CTR.CUO" Destination="PUB.REQ" /> </Request> DEV1.RES2: <Response ID="148" /> DEV1.RES2: <Request ID="149" Action="CREATE" > <Connection Source="CTR.RO" Destination="PUB.REQ" /> </Request> DEV1.RES2: <Response ID="149" /> DEV1.RES2: <Request ID="150" Action="CREATE" > <Connection Source="START.COLD" Destination="FF.S" /> </Request> DEV1.RES2: <Response ID="150" /> DEV1.RES2: <Request ID="151" Action="CREATE" > <Connection Source="START.WARM" Destination="FF.S" /> </Request> DEV1.RES2: <Response ID="151" /> DEV1.RES2: <Request ID="152" Action="CREATE" > <Connection Source="START.STOP" Destination="FF.R" /> </Request> DEV1.RES2: <Response ID="152" /> DEV1.RES2: <Request ID="153" Action="CREATE" > <Connection Source="FF.EO" Destination="RST.INIT" /> </Request> DEV1.RES2: <Response ID="153" /> DEV1.RES2: <Request ID="154" Action="CREATE" > <Connection Source="SB.RD_1" Destination="RUNSTOP.G" /> </Request> DEV1.RES2: <Response ID="154" /> DEV1.RES2: <Request ID="155" Action="CREATE" > <Connection Source="SB.RD_2" Destination="CLK.DT" /> </Request> DEV1.RES2: <Response ID="155" /> DEV1.RES2: <Request ID="156" Action="CREATE" > <Connection Source="SB.RD_3" Destination="CTR.PV" /> </Request> DEV1.RES2: <Response ID="156" /> DEV1.RES2: <Request ID="157" Action="CREATE" > <Connection Source="CTR.Q" Destination="PUB.SD_1" /> </Request> DEV1.RES2: <Response ID="157" /> DEV1.RES2: <Request ID="158" Action="CREATE" > <Connection Source="CTR.CV" Destination="PUB.SD_2" /> </Request> DEV1.RES2: <Response ID="158" /> DEV1.RES2: <Request ID="159" Action="CREATE" > <Connection Source="FF.Q" Destination="RST.QI" /> </Request> DEV1.RES2: <Response ID="159" /> DEV1.RES2: <Request ID="160" Action="CREATE" > <Connection Source="RST.QO" Destination="SB.QI" /> </Request> DEV1.RES2: <Response ID="160" /> DEV1.RES2: <Request ID="161" Action="CREATE" > <Connection Source="SB.QO" Destination="PUB.QI" /> </Request> DEV1.RES2: <Response ID="161" /> : <Request ID="162" Action="START" /> : <Response ID="162" /> |
