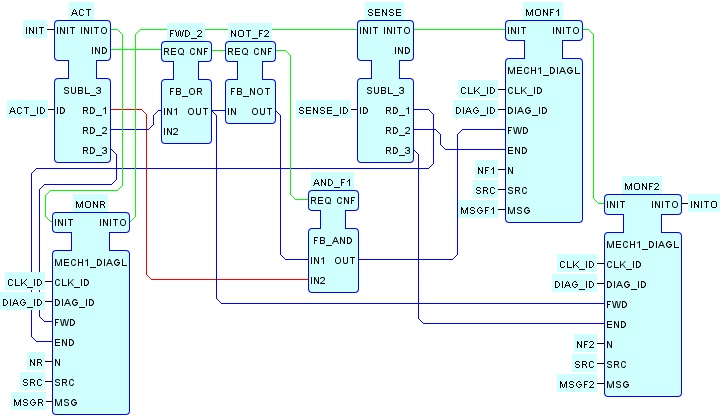

An instance of this Composite Function Block type utilizes three
instances of the MECH1_DIAG
type to provide diagnostics for a dual-stroke cylinder mechanism
modeled by the DSCYL_MDLL
type or the equivalent physical device. Faults detected are timeouts
when the first or second cylinder is advancing or when both
cylinders are retracting. The corresponding timeout periods and
diagnostic messages are given by the NF1/MSGF1,
NF2/MSGF2 and NR/MSGR pairs, respectively.
The function block sends and receives data using the local multicast
design pattern. Sensor and actuator data are received on the local
channels identified by the SENSE_ID and ACT_ID
inputs, respectively, and the diagnostic output is published on the
local channel identified by the DIAG_ID input.
Simulation clock events are received on the local channel identified
by the CLK_ID input. Identification of the source of
the diagnostic message is provided by the SRC input.
See the XBAR_MDLL function
block type for descriptions and default values for the *_ID
inputs.
